HD Cameras

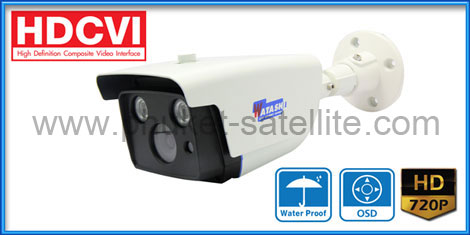

HD CVI : Watashi Model : WVI13024



กล้อง 1.3 ล้านพิกเซล

Specification

  • Image Sensor : 1/3" 1.3 Megapixel CMOS
  • Effective Pixels : 1280(H)×960(V)
  • Electronic Shutter : 4/25s~1/45,000s
  • Video Frame Rate : 25/30/50/60fps@720P
  • Synchronization : Internal
  • Min. Illumination : 0.01Lux@F1.2 (AGC ON), 0Lux IR LED on Camera
    Features
  • Max. IR LEDs Length : 50m, Day/Night : Auto(ICR) / Color / B/W
  • Noise Reduction : 2D/3D, OSD Menu : Support Lens
  • Focal length : 6mm fixed lens (4mm,8mm,12mm,16mm optional)
  • Mount Type : CS ,General Power Supply : DC12V±10%
  • Power Consumption : Max 7.7W
  • Working Environment : -30°C~+60°C/ Less than 95%RH (no condensation) Ingress Protection : IP66
  • Transmission Distance : Over 500m via 75-3 coaxial cable

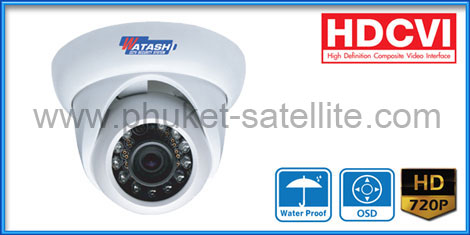

    • HD CVI : Watashi Model : WVI13031



    กล้องโดม 1.3 ล้านพิกเซล

    Specification

  • Image Sensor : Sony Exmor 1.37 Megapixel
  • Min.LLLumination : 0.0001Lux@(0 Lux IR ON)
  • Pixel : 1305(H)*1045(V) Lens, Furnished : HD 4mm Lens
  • Video Frame Rate : 25/30/50/60fps@720P, OSD : RS485
  • CVI/CVBS Button : Built In
  • WDR : ON/OFF Zoom IN : 0-5
  • Electronic Shutter : 1/50~1/100.000/1/60~1/100.000
  • Montion Detection : OFF/ON (4 Zone) ,Peivacy Masking : OFF/ON (8 Zone)
  • Transmission Distance : Over 500m via 75-3 coaxial cable
    Features
  • waterproof : IP67, Noise Reduction : 3D
  • Video Output : 1-channel BNC HDCVI high definition video output/CVBS standadrd definitionvideo output
  • ICR : Built In
  • Power Supply : DC12V±10%

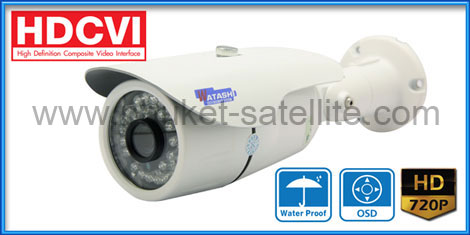

    • HD CVI : Watashi Model : WVI13037



    กล้องอินฟาเรด 1.3 ล้านพิกเซล

    Specification

  • Image Sensor : Sony Exmor 1.37 Megapixel
  • Min.LLLumination : 0.0001Lux@(0 Lux IR ON)
  • Pixel : 1305(H)*1045(V)
  • Lens Furnished : HD 4mm Lens
  • Video Frame Rate : 25/30/50/60fps@720P ,OSD : RS485
  • CVI/CVBS Button : Built In ,WDR : ON/OFF ,Zoom IN : 0-5
  • Electronic Shutter : 1/50~1/100.000/1/60~1/100.000
    Features
  • Montion Detection : OFF/ON (4 Zone) ,Peivacy Masking : OFF/ON (8 Zone)
  • Transmission Distance : Over 500m via 75-3 coaxial cable
  • waterproof : IP67 ,Noise Reduction : 3D
  • Video Output : 1-channel BNC HDCVI high definition video output/CVBS standadrd definitionvideo output
  • ICR : Built In
  • Power Supply : DC12V±10%
    • HD Recorder

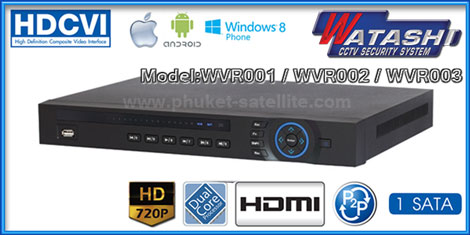

    HD CVR : Watashi Model : WVR001/WVR002/WVR003



    เครื่องบันทึก HD CVR

    Specification

  • 4/8/16 cameras with 1080p realtime previe
  • 264 dual-stream video compression
  • All channel 720P
  • HDMI / VGA simultaneous video output
  • 4 channel synchronous realtime playback, GRID interface & smart search
  • 3D intelligent positioning with PTZ dome camera
  • Support 1 SATA HDD up to 4TB, 2 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

    • Features

  • Video : Input BNC Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
  • Resolution : 1920×1080, 1280×1024, 1280×720, 1024×768,800×600
  • Image Resolution : 720P(1280×720/1280×600)/ 960H(960×576/960×480) /D1/4CIF(704×576/704×480)/CIF(352×288/352×240)/QCIF(176×144/ 176×120)
  • Network Functions : HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server , P2P
  • Smart Phone : iPhone, iPad, Android, Windows Phone

    •
